CuSn10 powder Copper Based Metal Powder

CuSn10 powder is a bronze alloy made of approximately 10% tin and 90% copper, known for its excellent mechanical properties, including strength, wear resistance, and corrosion resistance. It is manufactured through gas atomization to create fine, spherical particles and is used in additive manufacturing (3D printing) in the aerospace, automotive, and biomedical industries, and through water atomization or electrolytic method to create non-spherical particles for powder metallurgy parts like bearings and fasteners.

Our research engineers have shown that the LPBF process can achieve multi-material composite structural parts of 316L stainless steel and CuSn10, and tensile strength of their interface reaches 328MPa.

In addition, tin content (in between 10% to 33%, CuSn10, CuSn15, CuSn20, CuSn33) and particle size can be customized according to customer requirements.

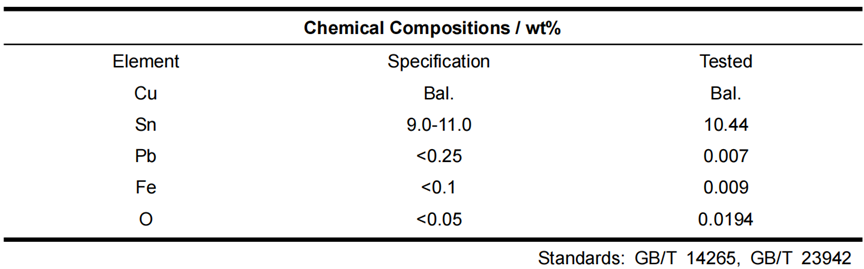

CuSn10 powder-Chemical composition (wt%):

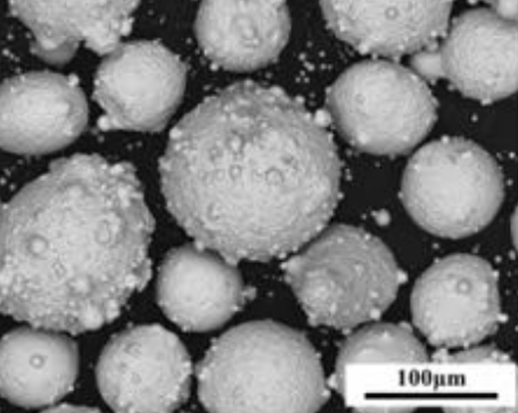

CuSn10 powder-Morphology:

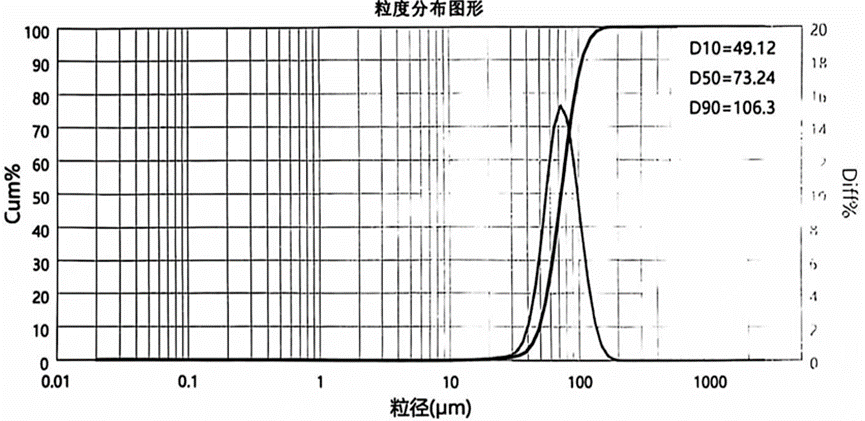

CuSn10 powder-Particle Size Distribution of 45-105um:

Common particle size include: 0-25um, 15-53um, 45-105um, 53-150um.

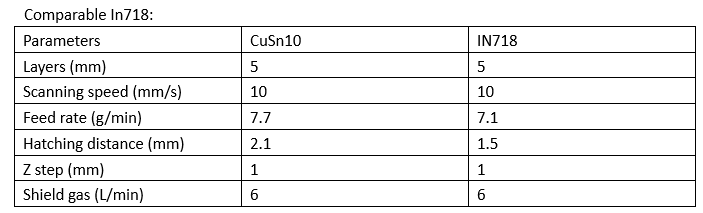

CuSn10 powder-Application Example of LDED:

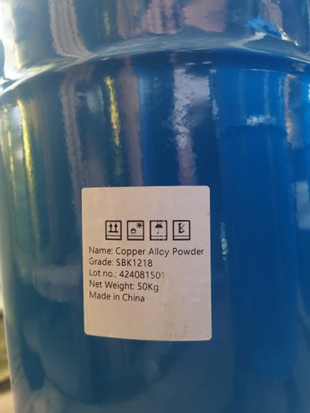

CuSn10 powder-Packing:
