Ti811 Titanium Alloy Powder
Ti811 (Ti 8-1-1) is a near alpha alloy with superior creep resistance. TRUER ® Ti 8-1-1 can provide creep resistance at operating temperatures up to 455°C and is used primarily in engine applications such as forged compressor blades and disks. This alloy has a relatively high tensile modulus to density ratio compared to most other commercial titanium alloys. Good weldability is another advantage of Ti811 alloy.
빠른 배송
높은 구형성
고품질
소규모 MOQ
이 제품 공유
제품 설명
Ti811 Titanium Alloy Powder
Ti811 (Ti 8-1-1) is a near alpha alloy with superior creep resistance. TRUER ® Ti 8-1-1 can provide creep resistance at operating temperatures up to 455°C and is used primarily in engine applications such as forged compressor blades and disks. This alloy has a relatively high tensile modulus to density ratio compared to most other commercial titanium alloys. Good weldability is another advantage of Ti811 alloy.
TRUER® Ti 811 spherical powder (Ti-8Al-1Mo-1V) is prepared by the plasma rotary electrode atomization process (PREP) or Electrode induction gas atomization (EIGA).
Its common particle size range of Ti811 powders includes 15-45um, 15-53um, 20-63um, 45-106um, 53-150um which can be applicable in AM, including SLM, EBM, DED etc.
화학 성분:

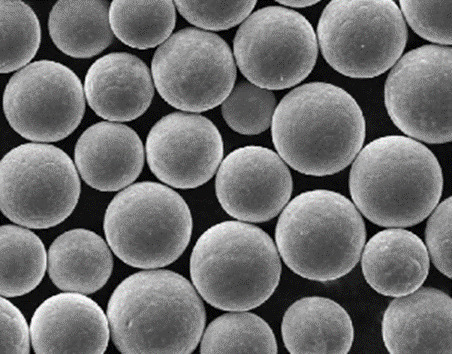

Powder Morphology:

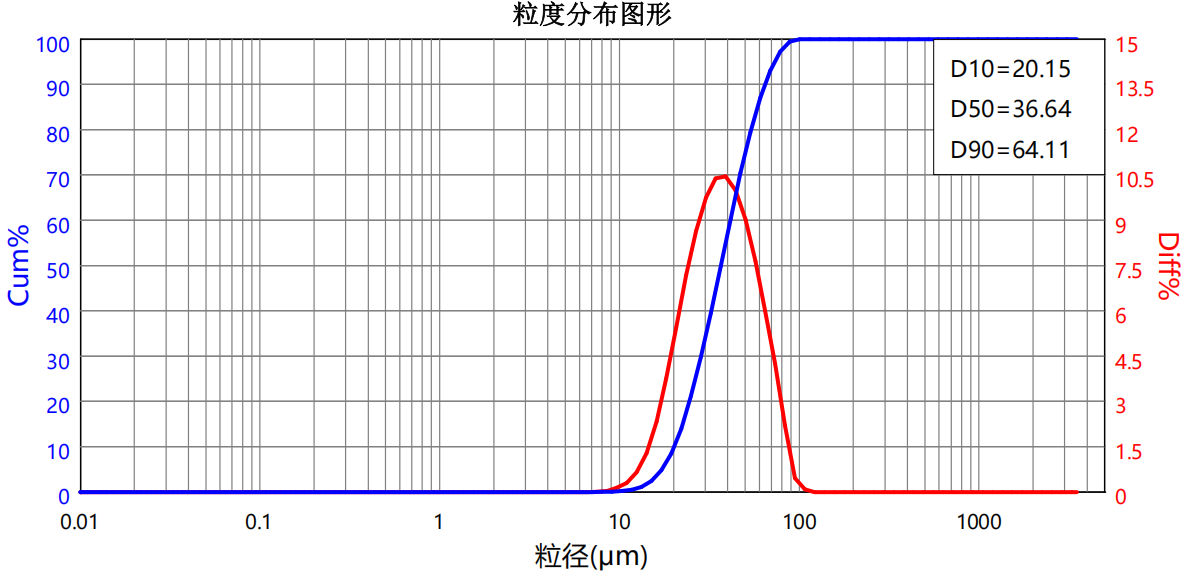

Particle Size Distribution of Typical type 20-63um:
Other particle size, 15-53um, 45-105um, 53-150um or as per customers’ requirements can also be provided.
Properties of Ti811 Alloy:
Test Item | 가치 | Test Condition |
Tensile Modulus | 135 GPa | Duplex Annealed 1650°F /1hr /AC + 1100°F/ 24hr / AC
At Room Temp. |
인장 강도 | 896MPa | For Forgings
At Room Temp. |
0.2% 항복 강도 | 827MPa | For Forgings
At Room Temp. |
연신율 (%)
|
10 | For Forgings
At Room Temp. |
Reduction in Area
|
20 | For Forgings
At Room Temp. |

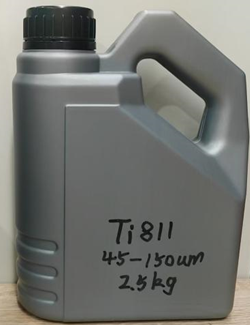

Package:
준비 시스템
AM 파우더
연관 상품
-
Ti48Al2Cr2Nb 분말
Ti48Al2Cr2Nb 분말은 주목할만한 합금으로 상당한 ...
-
Ti45Al8Nb 분말
Ti45Al8Nb 분말은 혁신적인 소재로서 상당한...
-
TC11 파우더 : 종합 가이드
티타늄 카바이드 11이라고도 알려진 TC11 분말은 ...
-
TA15 티타늄 합금 분말
TA15 분말은 티타늄 합금 계열에 속하며, 이는 ...
애플리케이션
업계에서의 역할
HIP 기술
열간 등방성 프레스(HIP) 기술은 제품을 밀폐된 용기에 넣고 불활성 가스로 채운 후 매우 높은 온도(일반적으로 재료의 단조 온도에 근접)와 매우 높은 압력(일반적으로 100~140MPa)에서 제품을 소결 또는 치밀화하는 방식으로 작동합니다. 이를 통해 제품을 소결 또는 치밀화할 수 있습니다.
SLM 기술
선택적 레이저 용융이라고도 하는 SLM은 레이저를 사용하여 특정 영역의 금속 분말을 녹이고 응고시킨 다음 층별로 쌓아 성형한다는 점에서 SLS와 원리가 유사합니다.
EBM 기술
전자빔 용융은 고속 전자빔 스트림의 운동 에너지가 고진공 상태에서 금속을 용융하는 열원으로 열로 변환되는 진공 용융 방법을 말합니다. 약어는 EBM입니다.
