Ti6242 Titanium Alloy Powder china supplier

Ti6242 Titanium Alloy Powder

Ti6242 (Ti-6Al-4Zr-2Mo-2Sn-Si) (TA19) is a weldable & near-alpha titanium alloy with excellent mechanical strength, stability and creep resistance to temperature as high as 550℃, normally for high technology components, such as racing engines & jet engine compressors. The nominal density and hardness is 4.54g/cc and 34HRC respectively.

Fast Delivery
High sphericity
High Quality
Small MOQ
Share This Product
Sent Inquiry

Product Description

Ti6242 Titanium Alloy Powder

Ti6242 (Ti-6Al-4Zr-2Mo-2Sn-Si) (TA19) is a weldable & near-alpha titanium alloy with excellent mechanical strength, stability and creep resistance to temperature as high as 550℃, normally for high technology components, such as racing engines & jet engine compressors. The nominal density and hardness is 4.54g/cc and 34HRC respectively.

TRUER® Ti6242 spherical powder is prepared by the plasma rotary electrode atomization process (PREP) or Electrode induction gas atomization (EIGA).

Its common particle size range of Ti6242 powders includes 0-25um, 15-45um, 15-53um, 20-63um, 45-106um, 53-150um which can be applicable in MIM, AM, including SLM, EBM, DED etc.

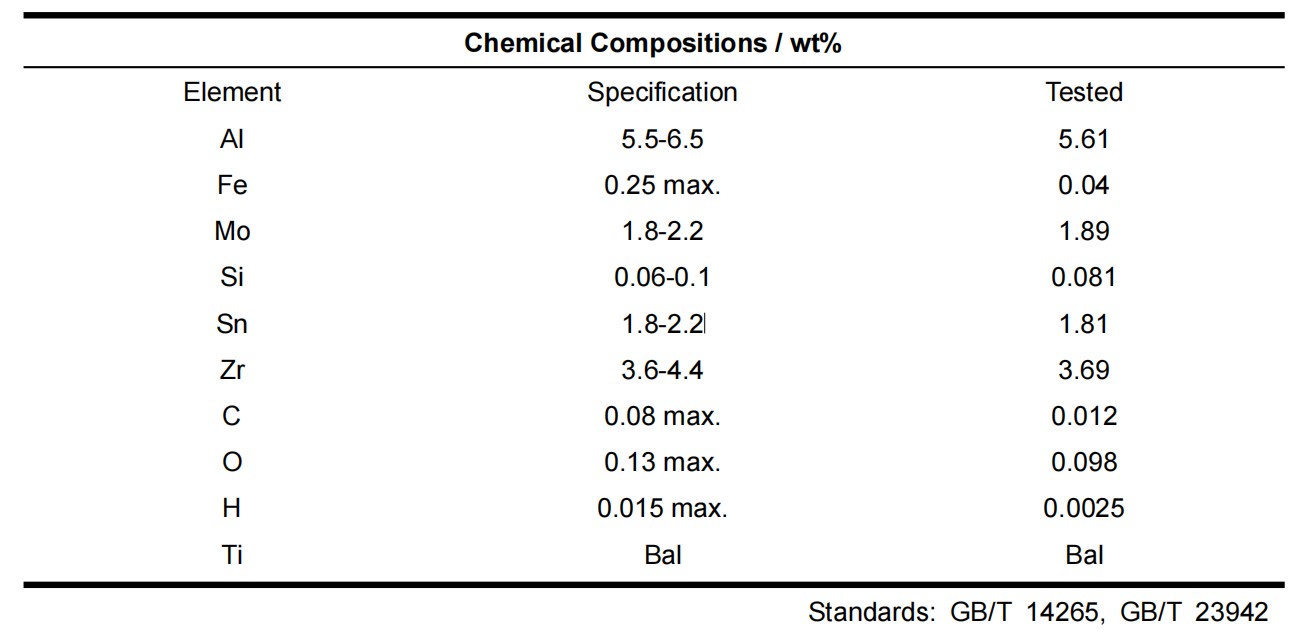

Chemical Composition:

Ti6242 Titanium Alloy Powder

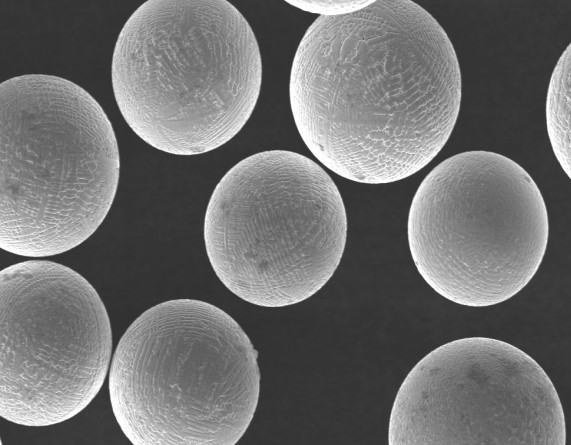

Powder Morphology:

Ti6242 Titanium Alloy Powder china supplier



Properties of Ti6242 Alloy (tested from duplex annealed bar):

Test Item Value Test Condition
Hardness 34HRC At Room Temp.
UTS 898MPa At Room Temp.
0.2% Yield Strength 834MPa At Room Temp.
Elongation (%) 12 At Room Temp.
Reduction in Area 25 At Room Temp.

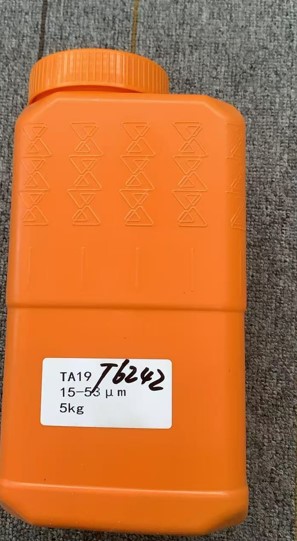

Package:

Ti6242 Titanium Alloy Powder packing

PREP System

AM Powder

Sent Inquiry

Any questions? Send us message now! We’ll serve your request with a whole team after receiving your message.

Sent Inquiry

Related products

Applications

How we play a role in the industry

VIEW ALL APPLICATION
HIP Technology

Hot Isostatic Pressing (HIP) technology works by placing the product in a closed container, filling it with inert gas and sintering or densifying the product at a very high temperature (usually close to the forging temperature of the material) and at a very high pressure (usually 100 – 140 MPa). This allows the product to be sintered or densified.

Learn More
MIM Technology

MIM products can be complex in shape, precise in size, high in strength and produced automatically in large quantities, and can significantly reduce the complexity and cost of traditional metalworking

Learn More
SLM Technology

SLM, also known as Selective Laser Melting, is similar in principle to SLS in that a laser is used to melt and solidify metal powder in a specified area, which is then moulded in a layer-by-layer stack.

Learn More
EBM Technology

Electron beam melting refers to a vacuum melting method in which the kinetic energy of a high speed electron beam stream is converted to heat as a heat source for melting metals under high vacuum. The abbreviation is EBM.

Learn More
